- Size: 90
- Place of Origin: Shandong, China
- Brand Name: Wanda
- Model Number: WDQT8-18
- Weight: 12000.000 kg

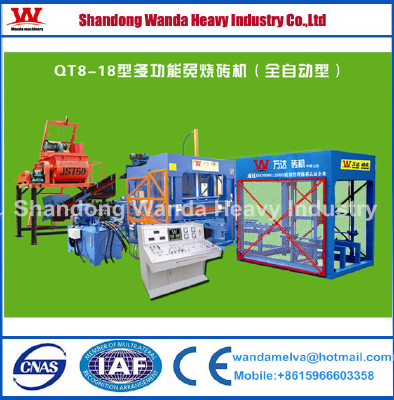

Environment protected WDQT8-18 full-automatic hydraulic baking-free hollow brick making machine
Standard configuration :
Blocking forming machine(including mold), hydraulic oil station,plate distributing and feeding machine, 7 meters belt conveyor, small plate frame for wet blocks,15 pieces pallets, PLC electronic control system
Provide by oneself Equipment :
JS500 mixer, PLD800 three warehouse batching station, small loader,manual hydraulic forklift),cement silo, cement screw conveyor.
Raw materials :
Crush stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial waste.
Applied products:
1. Standard bricks, blocks, perforated bricks, paving bricks etc. can be produced with various molds.
2. Concrete block, solid/hollow/porous products, garden and landscaping products, grass block, slope block, interlocking block, etc.
Product information:
Production Name | Brick making machine | Type | QT8-18 |
Automatic: | Yes | Method: | Hydraulic Pressure |
Brand Name: | Wanda | Place of Origin: | China |
Certification: | ISO9001 | Guarantee: | 1 year |
Machine size | 5140*2160*3100 | Pallet size | 1050*950*28 |
Machine weight | 7770kg | Total power | 92kw |
Forming height | 40-240mm | Molding cycle | 18-20s |
Vibration force | 75kN | Executive standard | Q/GWD002-2008 |
Part production capacity
Productoin of brick | Tile size(mm) | Molding blocks (Pieces) | Class production (Pieces) |
Standard brick | 240*115*53 | 42 | 75600-84000 |
Porous brick | 240*115*90 | 21 | 25200-30240 |
Hollow block | 390*190*190 | 8 | 11520-14400 |
Brick pavement | 100*200*60 | 24 | 10800-14400 |
Production conditions
Site (m2) | Other conditions | ||||
Stack space | 5000 | Operation shed | 250 | Consume water | 8-12T/Class |
Raw space | 1000 | Office space | 150 | Artificial | 4-10 people |
Packaging & Delivery
| Packaging Details: | International standard package |
| Delivery Detail: | 25 days after we receiving deposit |
Main Feature:
1. New structure
The host machine with both feeding machine and mould, vibration talbe adopts the hydraulic motor drive, compact structure.
2. Advanced performance
The machine adopts hydraulic transmission, effectively improves the reliable of the whole machine, which greatly reduces the noise and engergy consumption index, eliminated the electric heating problem which caused by meeting the molding process of intermittent start.
3. Shot molding time
Moulding cycle is shortened by 3 seconds,the output increased.
4. A high degree of automation
Advanced PLC technology, can realize the automatic feeding, automatic plate feeding, automatic moulding, automatic block transmission and other function. Parallel move device (computer control) for different cultural level`s users.
5. Economic and practical
Adjustabld large vibration force, large pressure, expand products range. It can produce both middle, lowdensity block and compact block (load bearing wall, roadway surface block, port road block etc)
